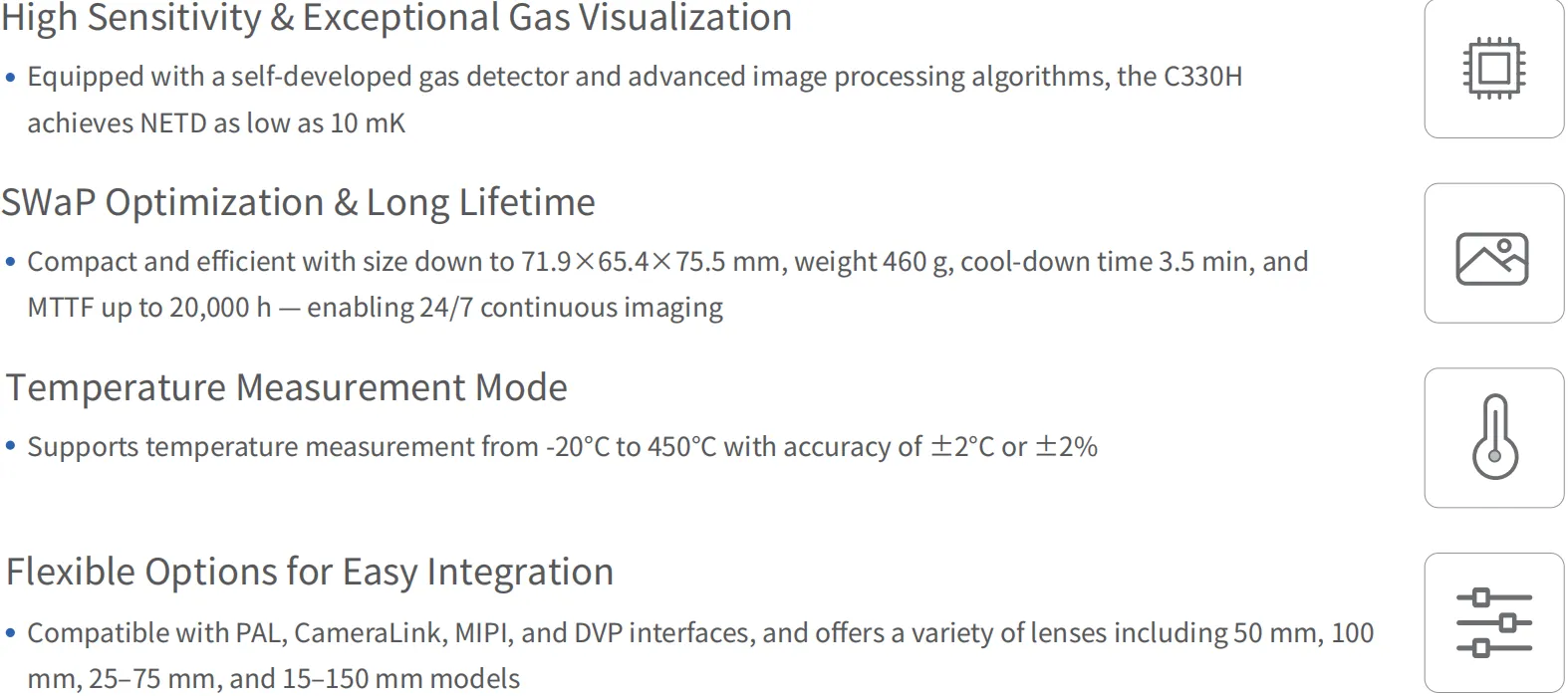

Highlights
Description
The Photon C330H Series is specifically designed for detecting leaks of organic compounds (VOCs) around the 3.3 μm wavelength. It converts invisible gases into visible infrared images. Equipped with a high operating temperature (HOT) cooled infrared gas detector, the C330H features a compact size, low weight, low power consumption (SWaP), high sensitivity, and long service life.
It meets the requirements of various civil applications, including handheld devices, online monitoring systems, civil UAVs and other civilian devices. The module supports multiple digital video interfaces and is compatible with both fixed-focus and continuous zoom lenses, making it ideal for applications such as oil and gas exploration, transportation, chemical processing, and environmental monitoring. An SDK is provided to facilitate secondary development and system integration.
Specifications
Specifications
Detector Type
Indium Arsenide Antimonide Cooled Infrared Focal Plane Detector
Resolution
320×256
Pixel Pitch
30μm
Frame Rate
25Hz
F #
1.2
Response Band
3.2~3.4μm
NETD
≤10mK@25℃
Types of Gas Detection
Methane, ethane, propane, butane, isobutane, ethylene, propylene, butene, methanol and the like
Cooled Time@25℃
≤3.5min
Optional Lens
Straight-tube motorized Focus free : 50 mm, 100 mm
Straight-tube continuous zoom: 25~75 mm, 15~150 mm
Straight-tube continuous zoom: 25~75 mm, 15~150 mm
Image Adjustment
Brightness/Contrast Adjustment
Automatic/manual
Polarity
Black hot/White hot (default), supports 8 false colors
Cross Cursor
Display/hide/move
Electronic Zoom
1.0~8.0×continuous zoom (step 0.1×)
Image Processing
Non-uniformity correction, digital filtering noise reduction, digital detail enhancement, scene mode switching, gas enhancement
Image Flip
Left/right, up/down, diagonal flip
Power Source
Power Supply Range
12±0.5V DC
Typical Power Consumption @25℃
Stable power consumption≤8W, peak power consumption ≤14W
Interface
Analog Video
PAL
Digital Video
Cameralink/DVP/MIPI
Serial Communication Interface
RS422/UART (3.3V)
External Synchronization
Internal synchronization (default)/external synchronization output/external synchronization input/adaptive synchronization
Temperature Measurement Performance
Temperature Measurement Range
-20℃ ~ 450℃
Temperature Measurement Accuracy
±2℃ (-20℃ ~ 100℃), 2% (>100℃)
Temperature Measurement Functions
Full Frame Analysis, Environmental Parameter Calibration, Temperature Span Stretching
Physical Properties
Dimensions (no lens)
71.9mm×65.4mm×75.5mm
Weight (no lens)
350g
Environmental Adaptability
Operating Case Temperature
-40℃~+70℃
Storage Case Temperature
-55℃~+70℃
MTTF
≥20000h
Storage Life
≥10 years
