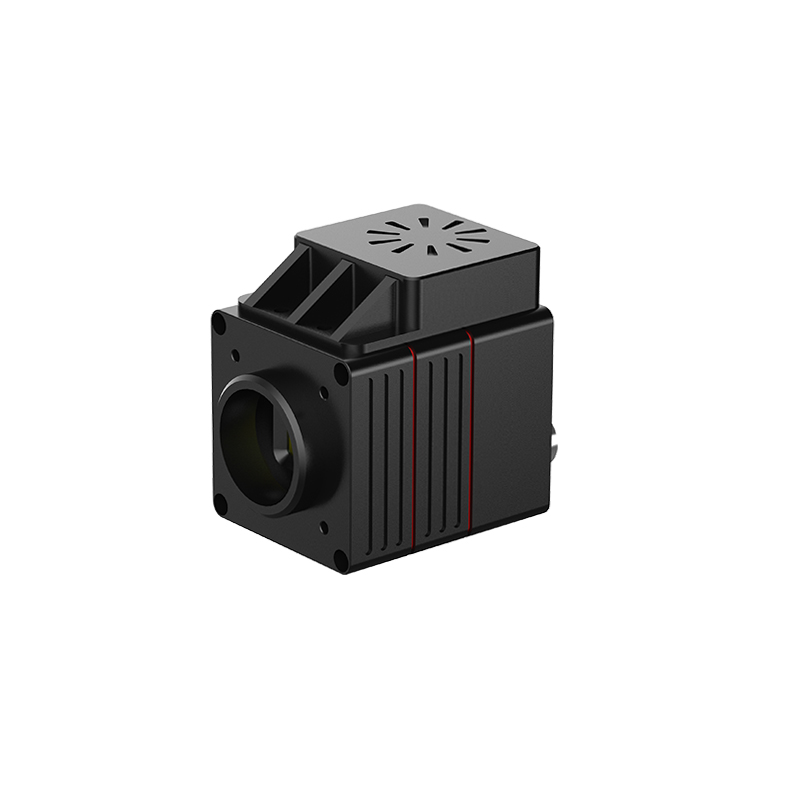

NS-615A-GE Area Scan SWIR Camera
- Model:
- NS-615A-GE
Features
Active pixel
640×512
Pixel pitch
15 μm
Maximum frame rate (full array)
180Hz
Typical power consumption
<2.5W (TEC off)
Core weight
150±5 g
Core dimensions
46×46×61mm³
Highlights
Description
The NS-615A-GE area array SWIR camera adopts an InGaAs detector with built-in image correction and image processing algorithms,as well as GigE image interfaces.
It features low noise, digital output, and low power consumption, making it widely applicable in semiconductors, sorting, etc.
Specifications
Product Model
NS‑615A‑GE
Detector Type
InGaAs short‑wave infrared focal plane detector
Spectral Response Range
0.9‑1.7μm
Pixel Pitch
15μm
Resolution
640×512
Frame Rate
180fps
Effective Pixel Rate
≥99.8%
Integration Type
Snapshot global shutter
Exposure Time Range
0.1ms~20ms
Cooled Mode
TEC 1
Output Data Depth
14bit/12bit/10bit/8bit
Readout Noise (Typical value)
30e@Gain0
Optional Gain
3‑level
Dynamic Range
67dB(HG)
Average Pixel Dark Current
≤100ke/s/pixel@20℃
On‑board Image Processing
Non‑uniformity correction, bad point correction
Power Supply Range
12V DC
Typical Power Consumption @25℃
<2.5W (close TEC)
Digital Video
GigE
Analog Video
/
Communication Interface
GigE
Optical Interface
C‑Mount
Weight
150g±5g
Dimensions
46mm×46mm×61mm
Operating Case Temperature
-40℃~+60℃
Storage Case Temperature
-40℃~+85℃
Vibration
50~2000Hz, 0.01g^2/Hz, 3 axes
Shock
25g, 6ms, half‑sine waveform, 3 axes/6 directions
