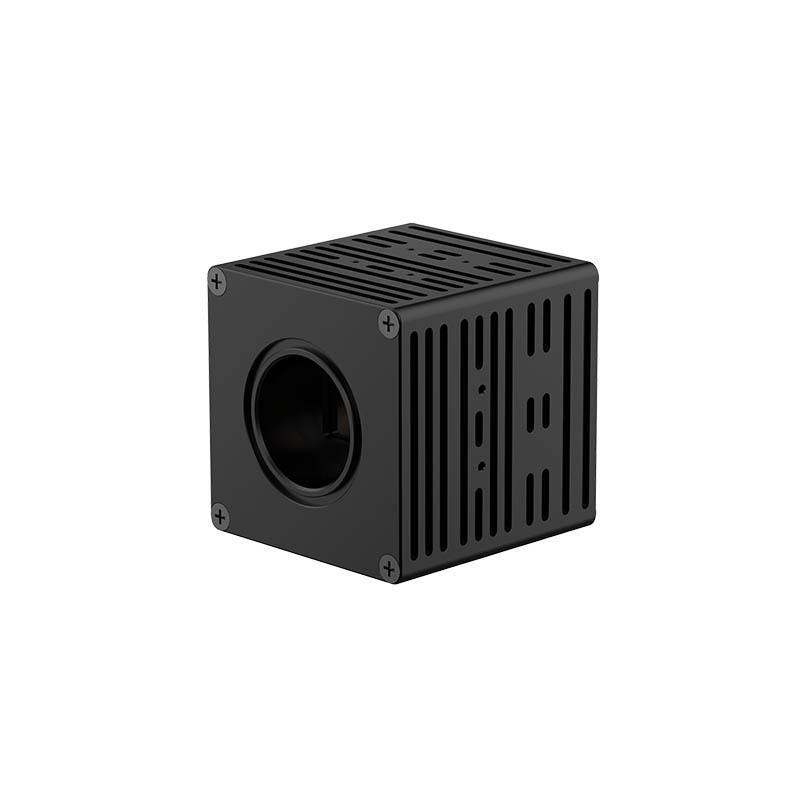

Pr-GE Short-Wave Infrared Area Array Cameras
- Model:
- Pr-GE
Features
Pixel Pitch
15μm
Active Pixels
640×512
Max Frame Rate
150fps(USB) / 300fps(CL)
Module Weight
245±10g
Dimensions
55×55×60mm³
Highlights
Description
Pr_GE SWIR Camera is a compact and versatile SWIR module. It adopts high-sensitive InGaAs focal plane detector with built-in adaptive image processing algorithm, supporting high frame rate operation and ROI windowing. While supporting USB3.0, CameraLink, and CVBS analog interface, active temperature control is also functioning.
Prober_GE features low noise, low power consumption and multiple built-in functions, which can be widely used in vision enhancement, machine vision, photovoltaic inspection, plastic sorting, laser detection, etc
Specifications
Product Model
PR‑GE
Detector Type
InGaAs short‑wave infrared focal plane detector
Spectral Response Range
0.9‑1.7μm
Pixel Pitch
15μm
Resolution
640×512
Frame Rate
150fps(USB3.0)/300fps(Cameralink)
Effective Pixel Rate
≥99.8%
Integration Type
Snapshot global shutter
Exposure Time Range
0.1ms~30ms
Cooled Mode
TEC 1
Output Data Depth
10bit/14bit(USB3.0)/12bit(Cameralink)
Readout Noise (Typical value)
30e@Gain0
Optional Gain
3‑level
Dynamic Range
50dB(Gain0),62dB(Gain1),72dB(Gain2)
Average Pixel Dark Current
≤80ke/s/pixel@25℃
On‑board Image Processing
Non‑uniformity correction, filtering, detail enhancement, contrast enhancement
Power Supply Range
7V~24V DC (12V DC recommended)
Typical Power Consumption @25℃
3.5W (maximum≤5 W)
Digital Video
USB 3.0 or Cameralink, optional
Analog Video
PAL
Communication Interface
UART232
Optical Interface
C‑Mount
Weight
245g±10g
Dimensions
55mm×55mm×60mm
Operating Case Temperature
-20℃~+55℃
Storage Case Temperature
-40℃~+70℃
Vibration
9.0g, random vibration, 3 axes
Shock
40g, 11 ms, sawtooth waveform, 3 axes/6 directions
