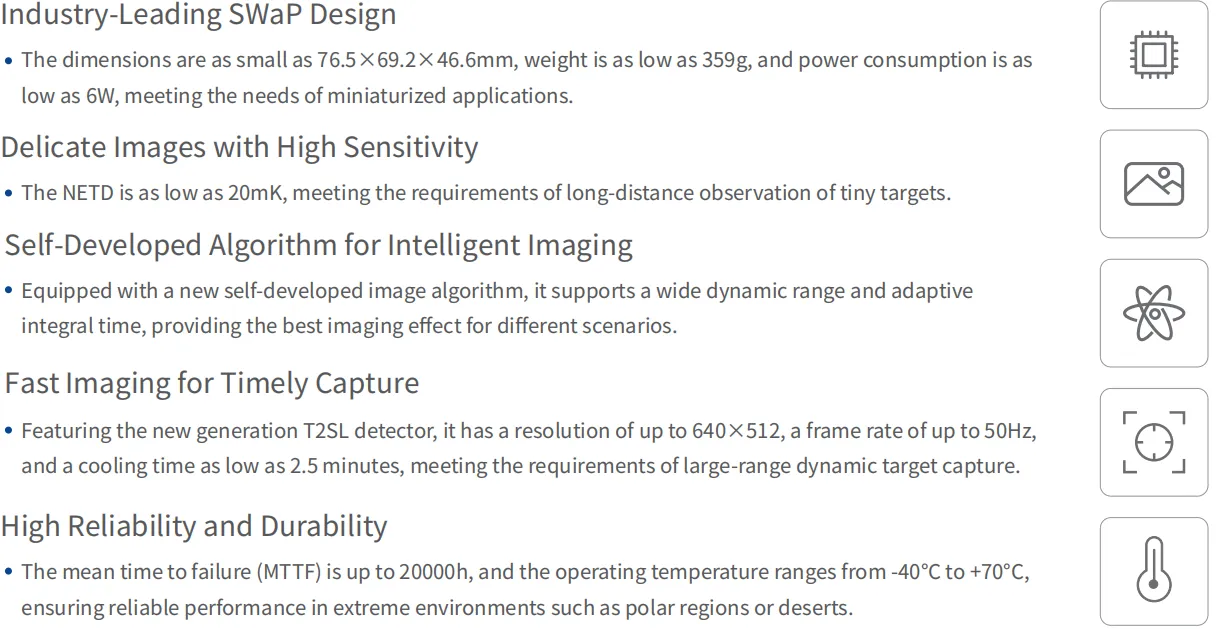

Highlights
Description
Photon H615 medium-wave HOT cooled infrared module is provided with the high-performance T2SL cooled infrared FPA detector, is designed with SWaP, and is carried with the self-developed image processing algorithm. It works flexibly and reliably and plots quickly.
It supports multiple digital video interfaces, is suitable for multiple focus and continuous zoom lenses, and is widely applied in the mini pod, handheld, border and sea defense and other scenarios. It provides an SDK, which is simple and easy to use, reducing secondary development costs.
Specifications
Product Model
Photon H615
Specifications
Detector Type
II superlattice-like refrigerated infrared focal plane detector
Resolution
640×512
Pixel Pitch
15μm
Frame Rate
50Hz/30Hz
F #
F4.0/F5.5
Response Band
3.6-5.0μm
NETD
≤20mK@F4.0, 25℃/≤25mK@F5.5, 25℃
Detector Dead-pixel Rate
≤0.5%
Cooled Time@25℃
≤3min
Optional Lens
Straight-tube focus-free: 50 mm, 200mm
Straight-tube continuous zoom: 15–300mm, 18–275 mm, 25–460mm, 33–660mm, 88–1100mm
Straight-tube continuous zoom: 15–300mm, 18–275 mm, 25–460mm, 33–660mm, 88–1100mm
Image Adjustment
Brightness/Contrast Adjustment
Automatic/manual
Polarity
Black hot/white hot (default)
Cross Cursor
Display/hide/move
Electronic Zoom
1.0–8.0× continuous zoom (step 0.1×)
Image Processing
Non-uniformity correction, digital filtering noise reduction, digital detail enhancement
Image Flip
Left/right, up/down, diagonal flip
Power Source
Power Supply Range
12±0.5 V DC, typical voltage: 12V
Typical Power Consumption @25℃
Stable power consumption≤6W, peak power consumption≤13W
Interface
Analog Video
PAL format
Digital Video
Cameralink/SDI/DVP/MIPI
Serial Communication Interface
RS422 (default baud rate: 115200)
External Synchronization
Internal synchronization (default)/external synchronous output/external synchronous input/adaptive synchronization
Physical Properties
Dimensions (no lens)
76.5mm×72.8mm×46.6mm
Weight (no lens)
≤364g
Environmental Adaptability
Operating Case Temperature
-40℃~+70℃
Storage Case Temperature
-45℃~+75℃
Random Vibration
4.16g
Shock
Sawtooth waveform, 30g, 11ms (3 axes/ 6 directions, 3 times each)
MTTF
≥20000h
Storage Life
≥10years
