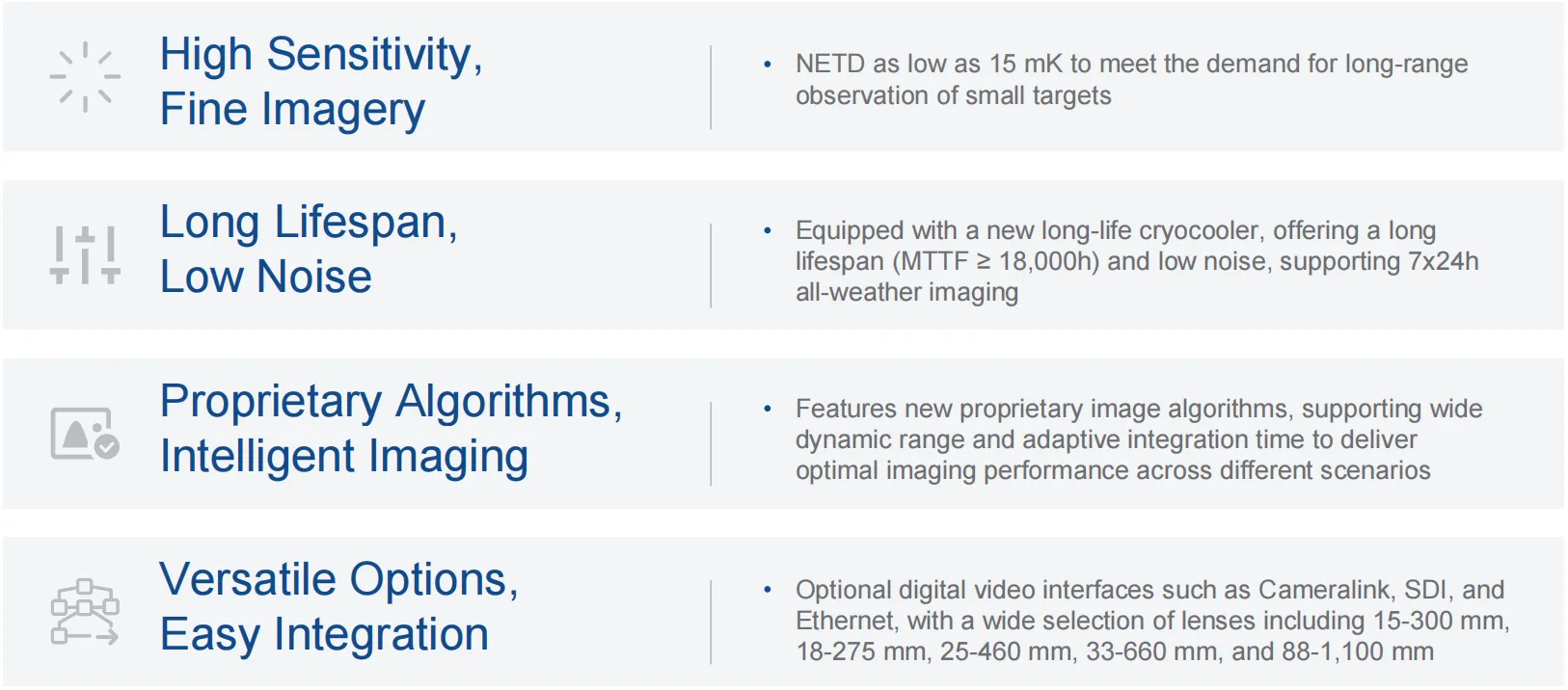

Highlights
Description
The Photon M615D is a mid-wave infrared (MWIR) cooled camera core that features a high-performance MCT (Mercury Cadmium Telluride) cooled infrared focal plane array (FPA) detector. It is equipped with a new long-life cryocooler offering a long lifespan (MTTF 18000 h) and low noise with a Noise Equivalent Temperature Difference (NETD) as low as 15 mK. Upgraded with a new generation of proprietary image processing algorithms, it is optimized for special scenarios such as forests, sea surfaces, sky and adverse weather like rain and fog, providing customers with clear and sharp infrared imagery.
It supports athermalized fixed-focus lenses and continuous zoom lenses, enabling features such as motorized focus, continuous zoom, auto-focus and athermalization compensation. It is widely used in long-range observation applications including situational awareness and perimeter security.
Specifications
Product Model
Photon M615D
Specifications
Detector Type
Mercury cadmium telluride refrigerated infrared focal plane detector
Resolution
640×512
Pixel Pitch
15μm
Frame Rate
50Hz/30Hz
F #
F4.0/F5.5
Response Band
3.7~4.8μm
NETD
≤15mK@25℃
Detector Dead-pixel Rate
≤0.5%
Cooled Time@25℃
≤7min
Optional Lens
Straight-tube Focus free: 50mm, 100mm
Straight-tube continuous zoom: 15–300mm, 18–275mm, 25–460mm, 33–660mm, 88–1100mm
Folded-path continuous zoom: 88–1100mm
Straight-tube continuous zoom: 15–300mm, 18–275mm, 25–460mm, 33–660mm, 88–1100mm
Folded-path continuous zoom: 88–1100mm
Image Adjustment
Brightness/Contrast Adjustment
Automatic/manual
Polarity
Black hot/white hot (default)
Cross Cursor
Display/hide/move
Electronic Zoom
1.0–8.0× continuous zoom (step 0.1×)
Image Processing
Non-uniformity correction, digital filtering noise reduction, digital detail enhancement
Image Flip
Left/right, up/down, diagonal flip
Power Source
Power Supply Range
11~13V DC (without spacer plate), typical voltage: 12V
Typical Power Consumption @25℃
Stable power consumption ≤15W, peak power consumption ≤25W
Interface
Analog Video
PAL format
Digital Video
CameraLink/SDI/Ethernet
Serial Communication Interface
RS422 (default baud rate: 115200)
External Synchronization
Internal synchronization (default)/external synchronous output/external synchronous input/adaptive synchronization
Physical Properties
Dimensions (no lens)
104mm×102mm×55mm (without spacer plate)
Weight (no lens)
≤572g (without spacer plate)
Environmental Adaptability
Operating Case Temperature
-40℃~+60℃
Storage Case Temperature
-45℃~+65℃
Temperature Shock
-45℃~+65℃ (≤5℃/min)
Random Vibration
4.2g
Shock
Sawtooth waveform, 40g, 11ms (3 axes/ 6 directions, 3 times each)
MTTF
≥18000h
Storage Life
≥10years
