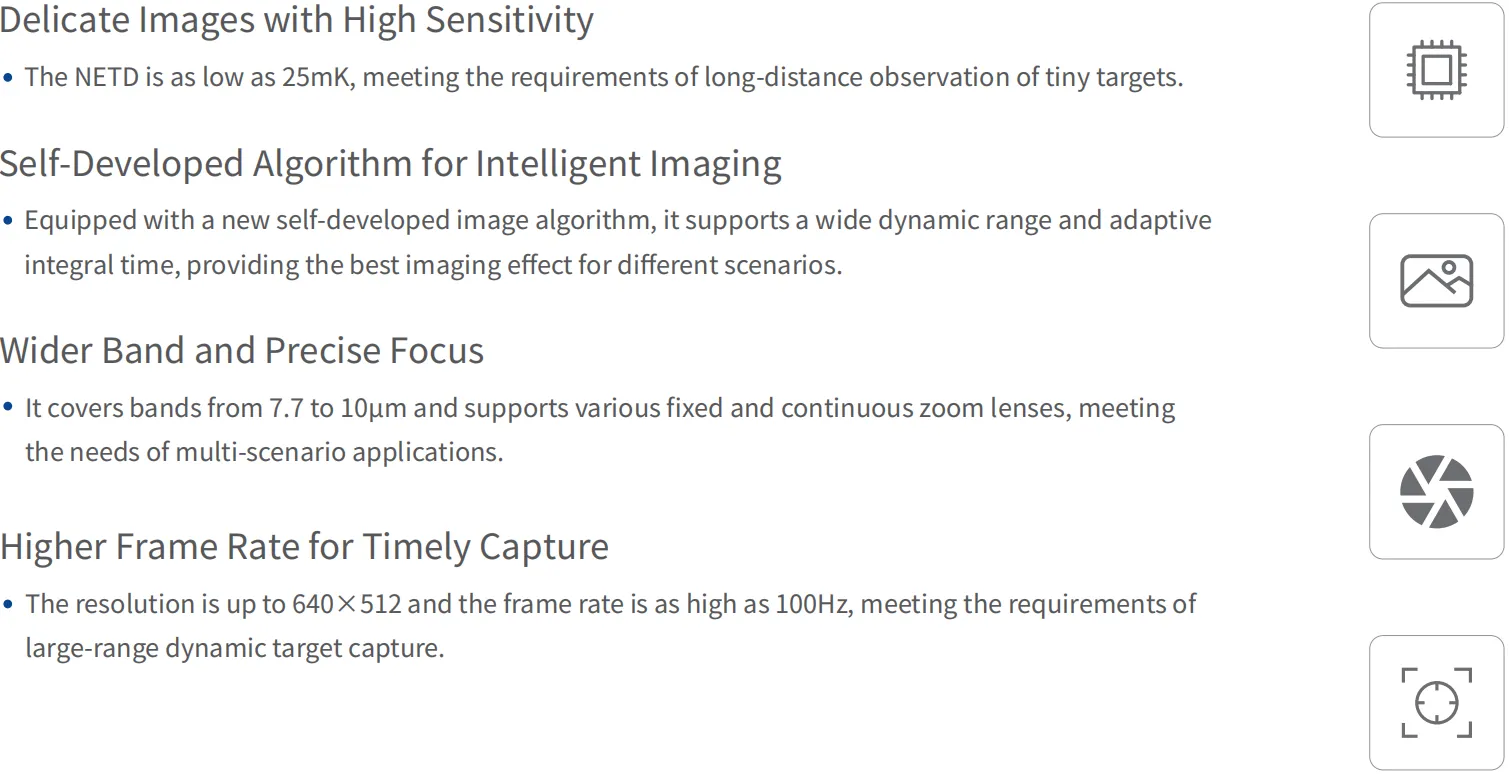

Highlights
Description
Photon L615 long-wave cooled infrared module is provided with the high-performance T2SL cooled infrared FPA detector and carried with the self-developed image processing algorithm. With better sand and dust penetrability, and anti-interference capacity of reflected light, it reaches a frame rate of up to 100Hz.
It supports multiple digital video interfaces, is suitable for multiple fixed focus and continuous zoom lenses, and is widely applied in sighting distance enhancement, border and coastal surveillance, UAV detection, and other scenarios. It provides an SDK, which is simple and easy to use, reducing secondary development costs.
Specifications
Product Model
Photon L615
Specifications
Detector Type
II superlattice-like refrigerated infrared focal plane detector
Resolution
640×512
Pixel Pitch
15μm
Frame Rate
100Hz/50Hz/30Hz
F #
F2.0
Response Band
7.7-10μm
NETD
≤25mK@25℃
Detector Dead-pixel Rate
≤0.5%
Cooled Time@25℃
≤7min
Optional Lens
Straight-tube Focus free : 50mm
Straight-tube continuous zoom:15–200mm, 20–300mm
Straight-tube continuous zoom:15–200mm, 20–300mm
Image Adjustment
Brightness/Contrast Adjustment
Automatic/manual
Polarity
Black hot/white hot (default)
Cross Cursor
Display/hide/move
Electronic Zoom
1.0–8.0×continuous zoom (step 0.1×)
Image Processing
Non-uniformity correction, digital filtering noise reduction, digital detail enhancement
Image Flip
Left/right, up/down, diagonal flip
Power Source
Power Supply Range
26~32V DC, typical voltage: 28V
Typical Power Consumption @25℃
Stable power consumption≤12W, peak power consumption≤25W
Interface
Analog Video
PAL format
Digital Video
Cameralink
Serial Communication Interface
RS422 (default baud rate: 115200)
External Synchronization
Internal synchronization (default)/external synchronous output/external synchronous input/adaptive synchronization
Physical Properties
Dimensions (no lens)
121mm×75mm×79mm
Weight (no lens)
≤870g
Environmental Adaptability
Operating Case Temperature
-40℃~+60℃
Storage Case Temperature
-45℃~+65℃
Random Vibration
6.06g
Shock
Sawtooth waveform, 30g, 11ms (3 axes/ 6 directions, 3 times each)
MTTF
≥10000h
Storage Life
≥15 years
Industry Solution
Security Monitoring
Personnel Search and Rescue
Port Security

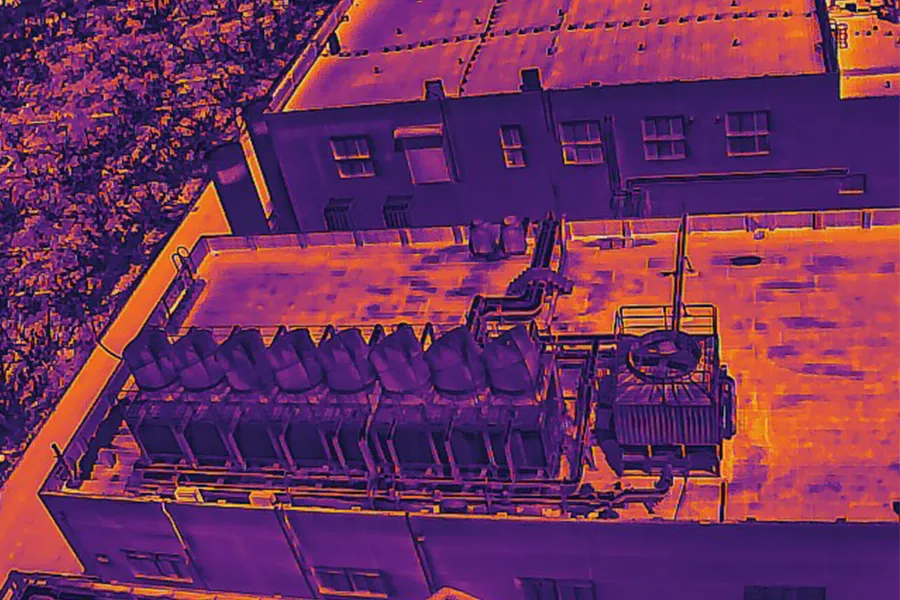

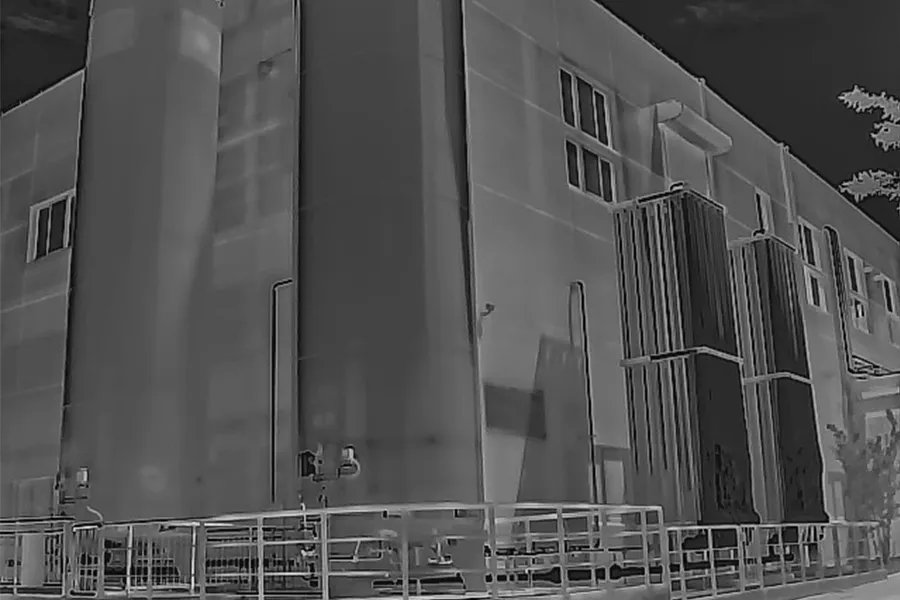

Preventive Maintenance
