Keen F615 Uncooled Short-Wave Infrared Module Component
- Model:
- Keen F615
Features

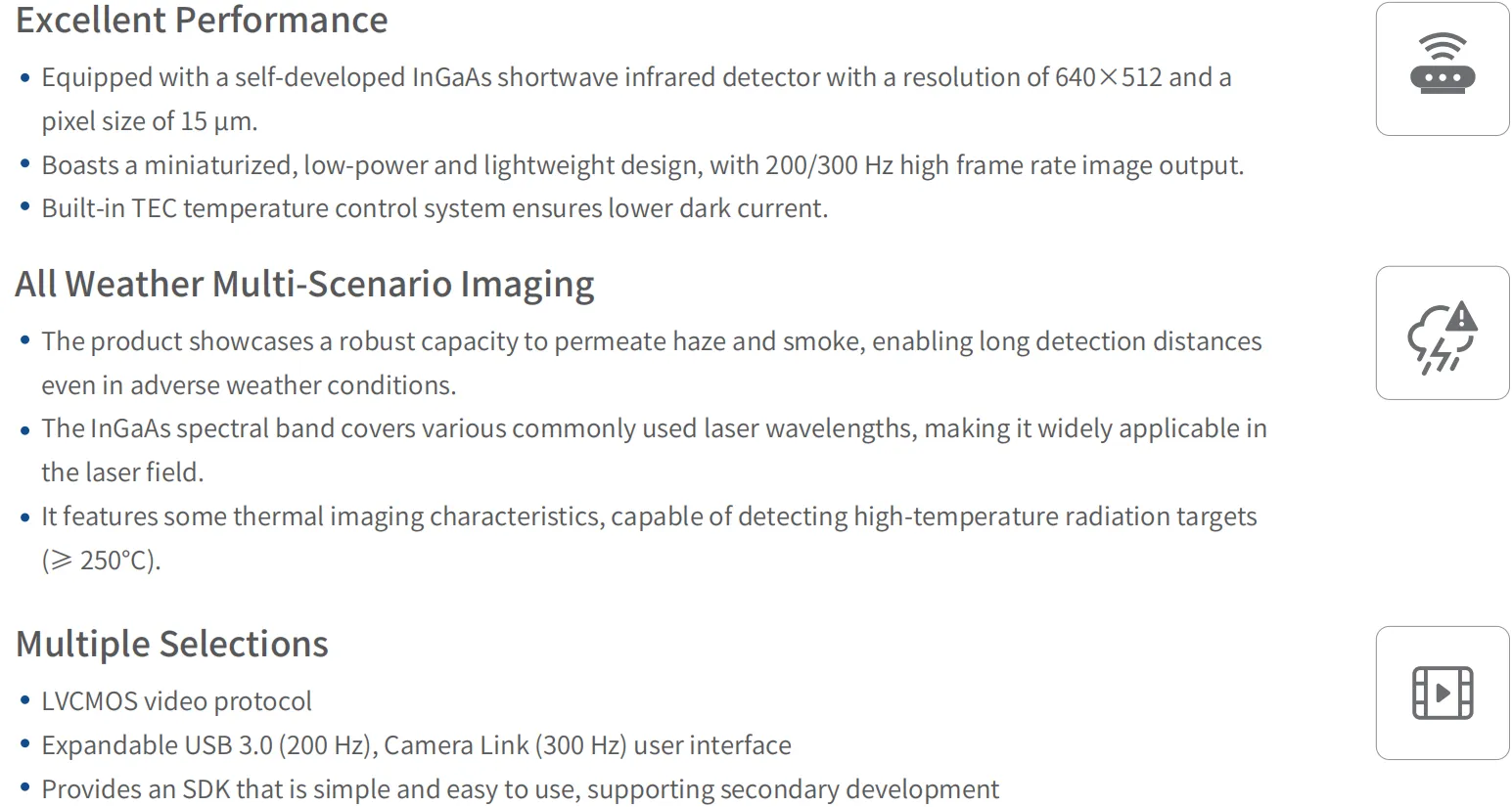

Highlights
Description
KSF615 uncooled short‑wave infrared module component is a camera designed for high frame rates. A high‑sensitivity InGaAs shortwave infrared detector with a pixel size of 15 μm and an array size of 640×512 is used, and the frame rate can reach 200/300 Hz. This product features low power consumption, low noise, and wide dynamic range.

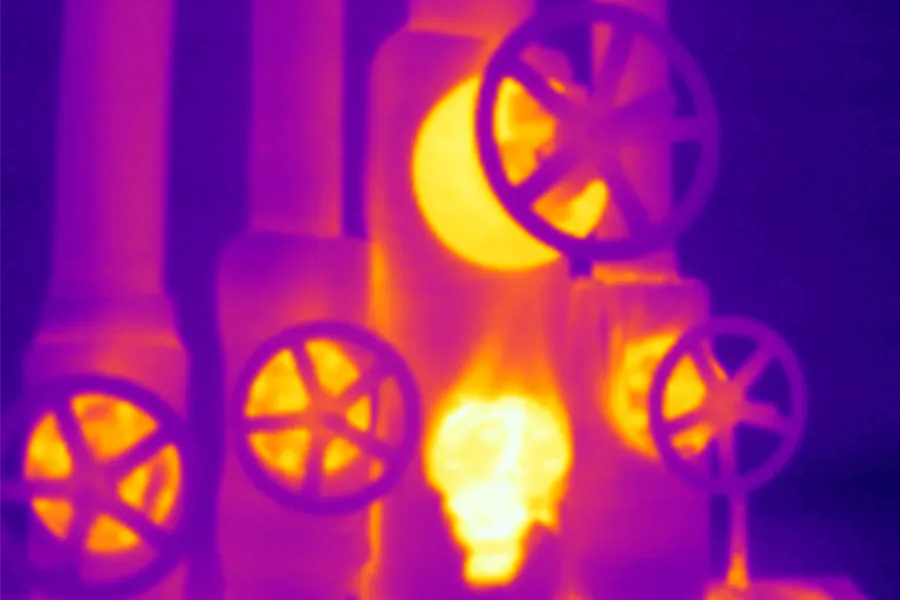

It supports multiple serial communication and video output interfaces. With various lightweight infrared lenses provided, it can be widely used in hyperspectral analysis, ultra‑high temperature measurement, laser welding, and other fields.
Specifications
Product Model
Keen F615
Detector Type
InGaAs short‑wave infrared focal plane detector
Spectral Response Range
0.9‑1.7μm
Pixel Pitch
15μm
Resolution
640×512
Frame Rate
25Hz~200Hz/300Hz
Effective Pixel Rate
≥99.8%
Integration Type
Snapshot global shutter
Exposure Time Range
0.1~35.1ms@200Hz 0.1~36.8ms@300Hz
Cooled Mode
TEC1
Average Pixel Dark Current
≤100ke/s@20℃
Power Supply Range
5‑24V DC (voltage:12V, DC, recommended)
Typical Power Consumption @25℃
<4W
Digital Video
Camera Link (300 Hz)/USB 3.0 (200 Hz)
Communication Interface
RS‑422/USB
Optical Interface
C‑Mount
Weight
195g±3g (without lens)
Dimensions
54mm×54mm×48mm±0.3mm (without lens)
Operating Case Temperature
-40℃~+50℃
Storage Case Temperature
-45℃~+85℃
Vibration
6.06g, random vibration, 3 axes
Shock
80g, 4ms, final peak sawtooth wave, 3 axes and 6 directions
