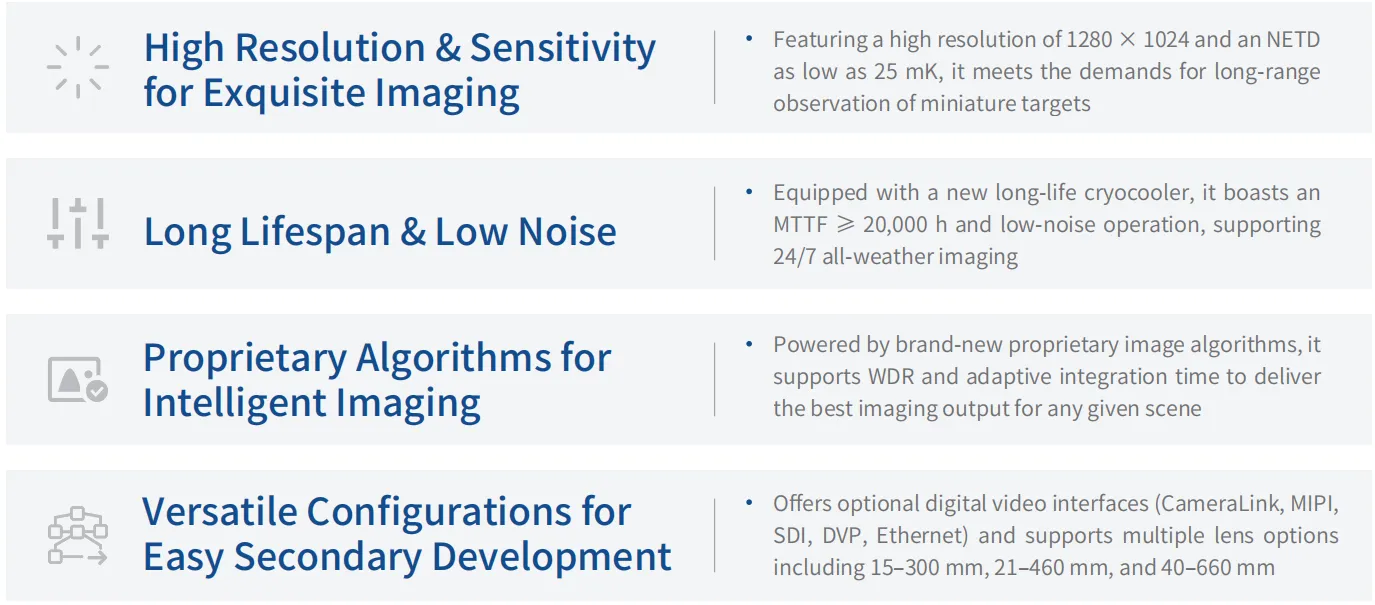

Highlights
Description

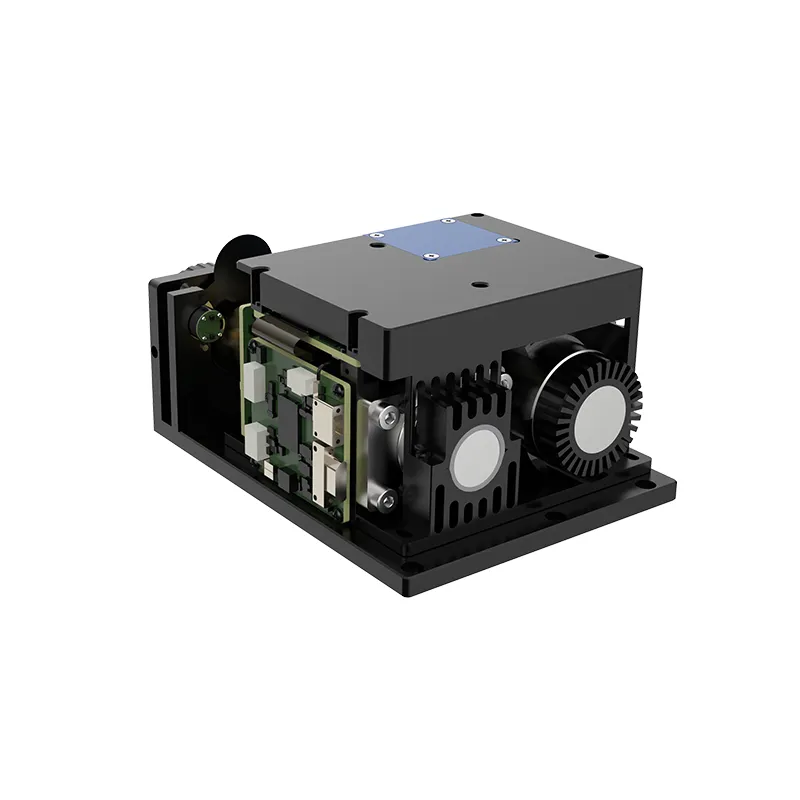

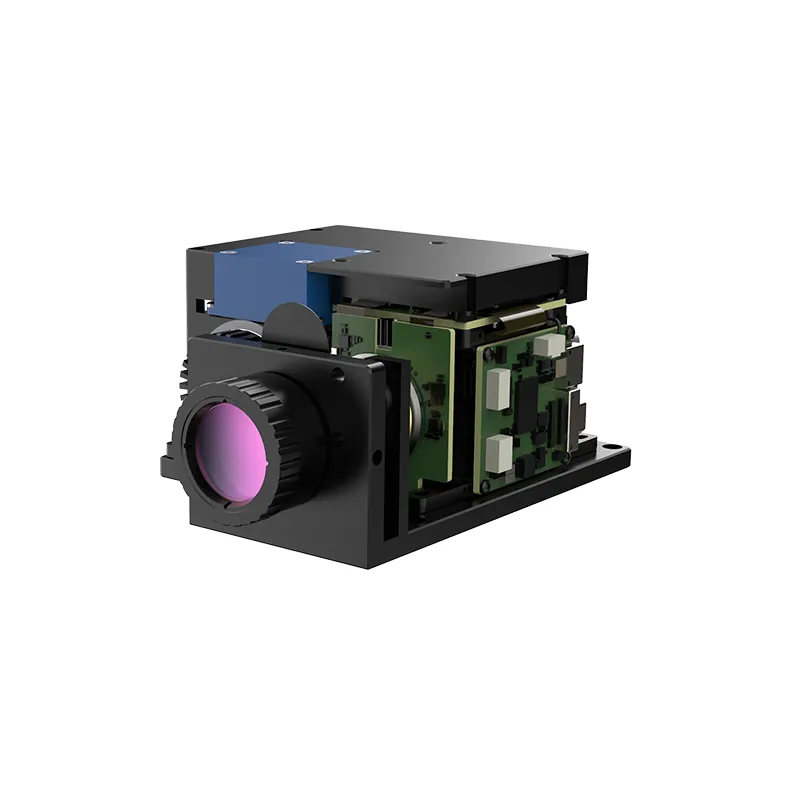

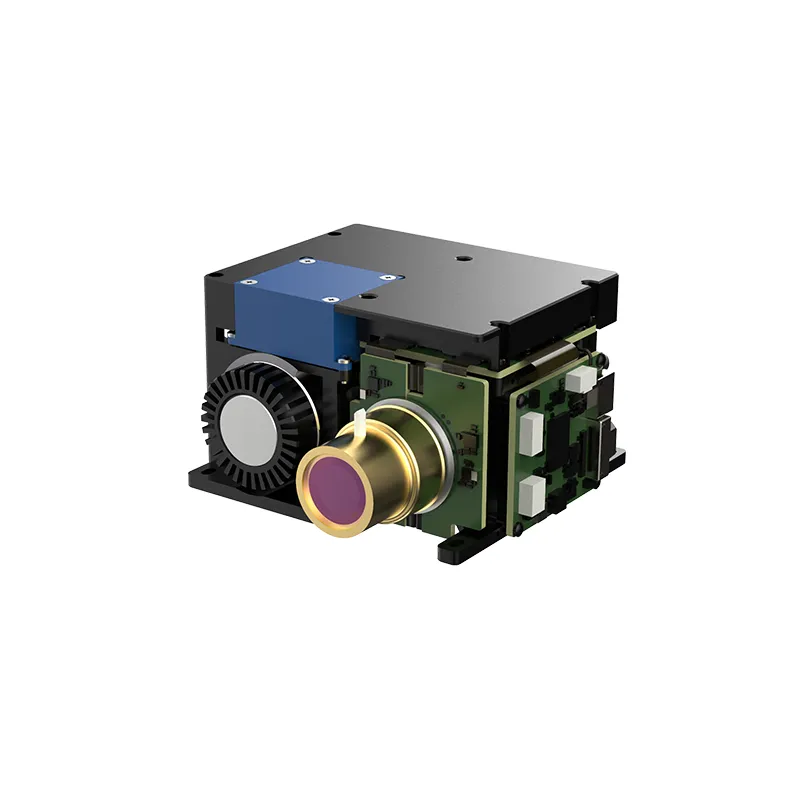

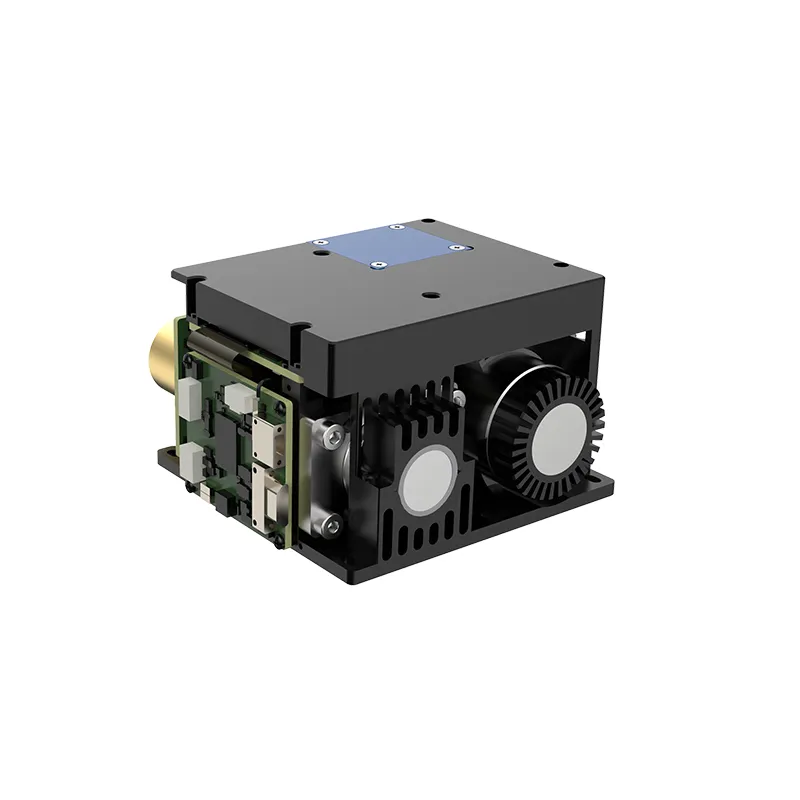

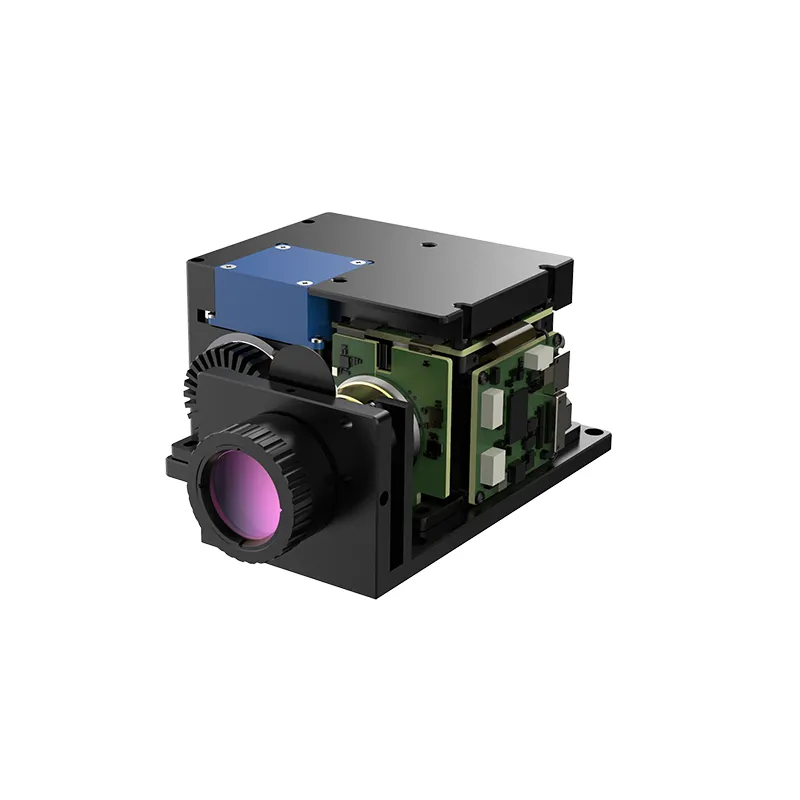

The Photon MS10 features a high-performance HgCdTe (MCT) cooled infrared Focal Plane Array (FPA) detector and a new long-life cryocooler. It offers advantages such as extended lifespan (MTTF ≥ 20,000 h) and low noise. With a high resolution of 1280 × 1024 and an NETD as low as 25 mK, it perfectly meets the demands for long-range observation of miniature targets. Powered by our next-generation proprietary image algorithms, it supports Wide Dynamic Range (WDR) and adaptive integration time, delivering optimal imaging results tailored to different scenes.
Compatible with athermalized prime lenses and continuous zoom lenses. It features motorized focus, continuous zoom, auto-focus, and defocus compensation. It is widely applied in long-range observation scenarios such as vision enhancement and urban security.
Specifications
Product Model
Photon MS10
Specifications
Detector Type
Mercury cadmium telluride cooled infrared focal plane detector
Resolution
1280×1024
Pixel Pitch
10μm
Frame Rate
50Hz
F#
F2.0/F4.0
Response Band
3.7 ± 0.2 μm – 4.8 ± 0.2 μm
NETD
≤25mK@25℃
Detector Dead-pixel Rate
0.20%
Cooled Time @ 25℃
5min30s
Optional Lens
Straight-barrel prime lens: 25 mm;
Straight-barrel continuous zoom lenses: 15–300 mm, 21–460 mm, 40–660 mm
Straight-barrel continuous zoom lenses: 15–300 mm, 21–460 mm, 40–660 mm
Image Adjustment
Brightness/Contrast Adjustment
Automatic/Manual
Polarity
Black hot / White hot (default)
Cross Cursor
Display/Hide/Move
Electronic Zoom
1.0–8.0× continuous zoom (step 0.1×)
Image Processing
Non-uniformity correction, digital filtering noise reduction, digital detail enhancement
Image Flip
Left and right/up and down/diagonal flip
Power Source
Power Supply Range
24 ± 0.5 V DC, typical voltage: 24V
Power Consumption @ 25 ℃
Stable power consumption ≤15W, peak power consumption ≤30W
Interface
Digital Video
CameraLink / MIPI / SDI / DVP / Ethernet
Serial Communication Interface
RS422 (default baud rate: 115200)
External Synchronization
Internal synchronization (default)/external synchronous output/external synchronous input/adaptive synchronization
Physical Properties
Dimensions (without lens)
112×98.5×60mm
Weight (without lens)
≤900g (without spacer plate)
Environmental Adaptability
Operating Case Temperature
-40℃ ~ +60℃
Storage Case Temperature
-45℃ ~ +70℃
Random Vibration
6.06g
Shock
Half-sine pulse, 30 g, 11 ms (3 times per axis across 6 directions)
Mean Time To Failure (MTTF)
≥20,000h@25℃
Storage Life
≥10 years
