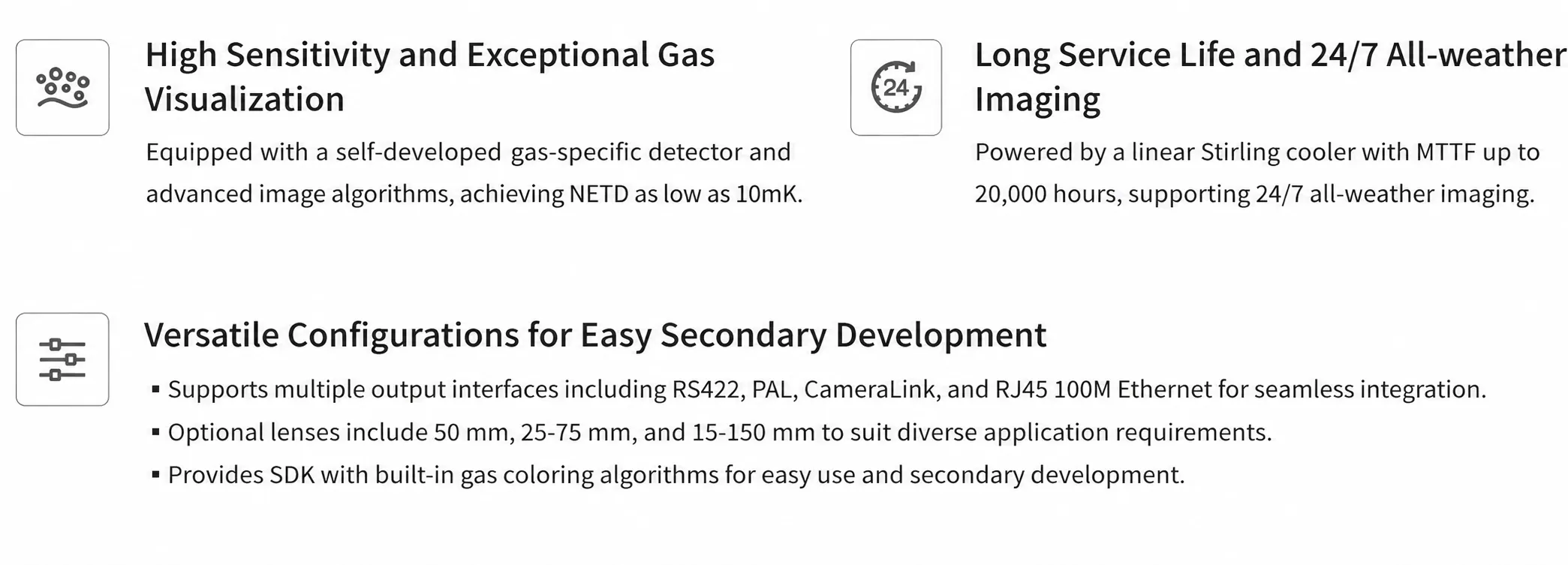

Highlights
Description
The Photon C330L series is specifically designed for detecting VOCs (Volatile Organic Compounds) leaks near the 3.3μm band, converting invisible gas leaks into visible infrared images. Integrated with a linear Stirling cooler, it offers long operational life and high sensitivity, meeting the requirements of handheld and fixed online monitoring devices.
Supporting multiple digital video interfaces and compatible with various fixed-focus and continuous zoom lenses, it is ideal for oil & gas extraction, transportation, chemical industry, and environmental monitoring. Comprehensive SDK is provided to offer a complete solution for secondary development.
Specifications
Specifications
Detector Type
MCT Refrigerated infrared focal plane detector
Resolution
320×256
Pixel Pitch
30μm
Frame Rate
25Hz
F #
1.2
Response Band
3.2-3.4μm
NETD
≤15mK@25℃
Types of Gas Detection
Methane, ethane, propane, butane, isobutane, ethylene, propylene, butene, methanol and the like
Cooled Time@25℃
≤5min
Optional Lens
Straight-tube Focus free:50mm; Straight-tube continuous zoom:25-75mm, 15~150mm
Image Adjustment
Brightness/Contrast Adjustment
Automatic/manual
Polarity
Black hot/White hot (default), supports 8 false colors
Cross Cursor
Display/hide/move
Electronic Zoom
1.0–8.0× continuous zoom (step 0.1×)
Image Processing
Non-uniformity correction, defective pixel correction, digital filtering noise reduction, digital detail enhancement, scene mode switching, gas enhancement Normal/left/right, up/down, diagonal flip
Image Flip
Left/right, up/down, diagonal flip
Power Source
Power Supply Range
DC 24V@Cameralink/POE IEEE 802.3BT@Ethernet
Typical Power Consumption @25℃
Stable power consumption≤13W (fixed-focus lens), peak power consumption≤21W @ Cameralink
Interface
Analog Video
PAL format@Cameralink
Digital Video
Cameralink/Ethernet
Serial Communication Interface
RS422@Cameralink/RJ45 100M Ethernet network port@ Ethernet
Physical Properties
Dimensions (no lens)
150mm×72.8mm×89.5mm
Weight (no lens)
≤824g@Cameralink/≤958g@Ethernet
Environmental Adaptability
Operating Case Temperature
-20℃~+50℃
Storage Case Temperature
-30℃~+60℃
MTTF
≥15000h
Storage Life
≥10 years
