Highlights
Description

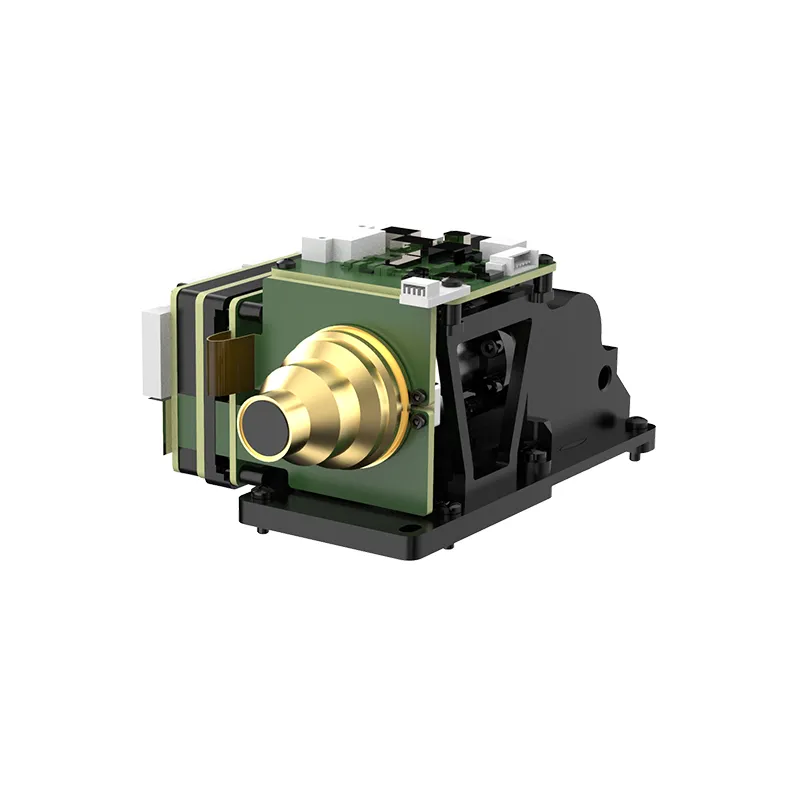

Photon M615L medium-wave cooled infrared module is provided with the high-performance HgCdTe cooled infrared FPA detector, and carried with the self-developed image processing algorithm. It reaches the frame rate of up to 100Hz, and has the NETD as low as 15mK.
It supports multiple digital video interfaces, is suitable for multiple focus and continuous zoom lenses, and is widely applied in sighting distance enhancement, border and coastal surveillance and other scenarios. It provides an SDK, which is simple and easy to use, reducing secondary development costs.
Specifications
Product Model
Photon M615L
Specifications
Detector Type
Mercury cadmium telluride refrigerated infrared focal plane detector
Resolution
640×512
Pixel Pitch
15μm
Frame Rate
50Hz/30Hz
F #
F4.0/F5.5
Response Band
3.7~4.8μm
NETD
≤15mK@25℃
Detector Dead-pixel Rate
≤0.5%
Cooled Time@25℃
≤7min
Optional Lens
Straight-tube focus-free: 50 mm, 100mm
Straight-tube continuous zoom: 15~300mm, 18~275mm, 25~460mm, 33~660mm, 88~1100mm
Folded-path continuous zoom: 88~1100mm
Straight-tube continuous zoom: 15~300mm, 18~275mm, 25~460mm, 33~660mm, 88~1100mm
Folded-path continuous zoom: 88~1100mm
Image Adjustment
Brightness/Contrast Adjustment
Automatic/manual
Polarity
Black hot/white hot (default)
Cross Cursor
Display/hide/move
Electronic Zoom
1.0–8.0× continuous zoom (step 0.1×)
Image Processing
Non-uniformity correction, digital filtering noise reduction, digital detail enhancement
Image Flip
Left/right, up/down, diagonal flip
Power Source
Power Supply Range
11~13V DC (without isolation board), typical voltage:12V
Typical Power Consumption @25℃
Stable power consumption≤10W, peak power consumption≤25W
Interface
Analog Video
PAL format
Digital Video
Cameralink/SDI/Ethernet
Serial Communication Interface
RS422 (default baud rate: 115200)
External Synchronization
Internal synchronization (default)/external synchronous output/external synchronous input/adaptive synchronization
Physical Properties
Dimensions (no lens)
120 mm×88 mm×57mm (Without spacer plate)
Weight (no lens)
≤480g (without spacer plate)
Environmental Adaptability
Operating Case Temperature
-40℃~+60℃
Storage Case Temperature
-45℃~+65℃
Temperature Shock
-45℃~+65℃ (≤5℃/min)
Random Vibration
4.2g
Shock
Sawtooth waveform, 40g, 11ms (3 axes/ 6 directions, 3 times each)
MTTF
≥6000h
Storage Life
≥10years
