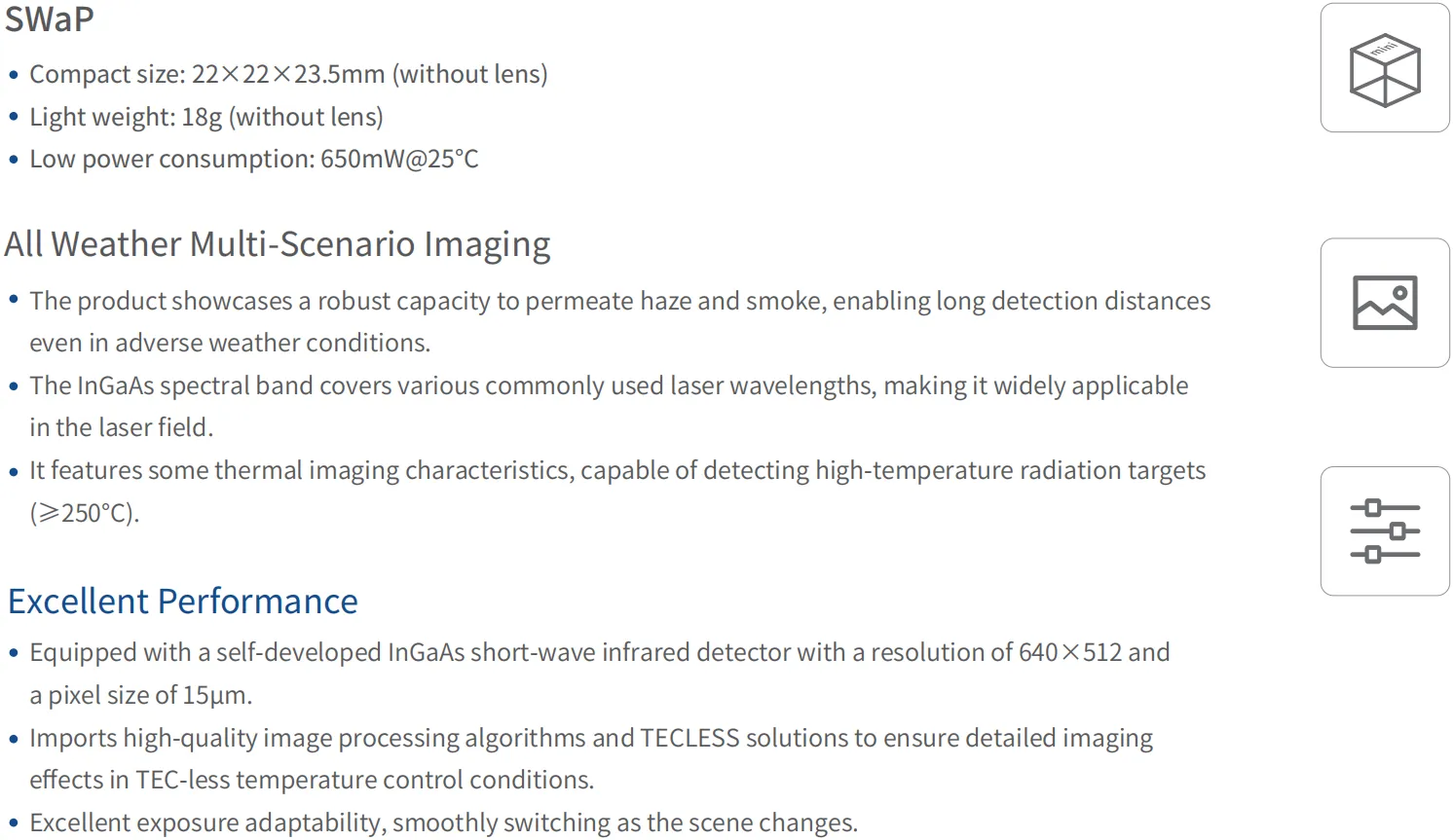

Highlights
Description

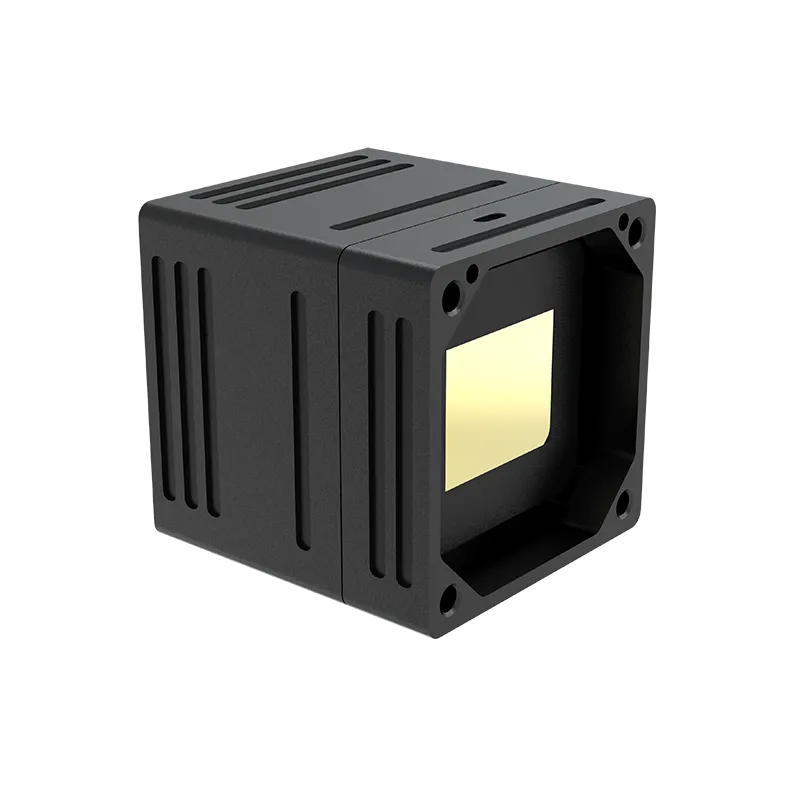

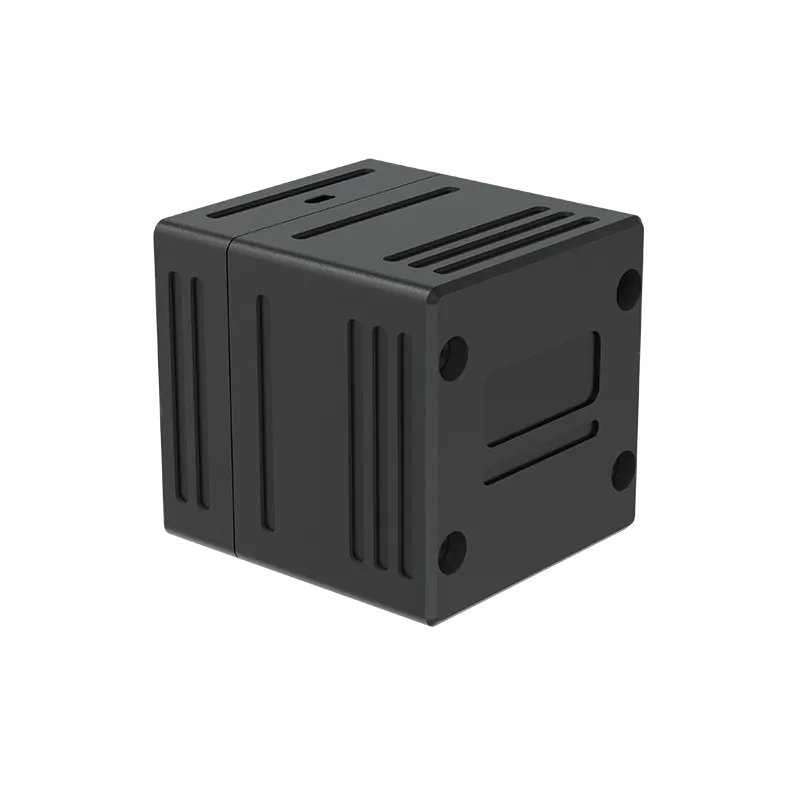

Keen M615 lightweight short‑wave infrared module adopts a self‑developed InGaAs shortwave Infrared FPA detector with a pixel size of 15μm and an array size of 640×512, specifically developed for mobile scenarios. Featuring SWaP, it measures 22×22×23.5mm and weighs only 18g, and has a low power consumption of 0.65w.
It is suitable for mobile and portable battery‑powered systems such as UAVs, handheld devices, and outdoor observation.
Specifications
Product Model
Keen M615
Detector Type
InGaAs short‑wave infrared focal plane detector
Spectral Response Range
0.9‑1.7μm
Pixel Pitch
15μm
Resolution
640×512
Frame Rate
25Hz
Effective Pixel Rate
≥99.8%
Integration Type
Snapshot global shutter
Exposure Time Range
0.005‑20ms
Output Data Depth
bit/10bit/14bit
Readout Noise (Typical value)
35e@Gain0
Optional Gain
3‑level
Dynamic Range
50dB(Gain0),60dB(Gain1),73dB(Gain2)
Average Pixel Dark Current
≤ 100ke/s@20℃
On‑board Image Processing
Non‑uniformity correction, brightness/contras adjustment, time domain/airspace noise reduction, digital detail enhancement
Power Supply Range
5V DC
Typical Power Consumption @25℃
<650mW
Digital Video
MIPI/Camerlink/USB3.0
Communication Interface
RS‑422/UART (1.8V)
Optical Interface
C‑Mount
Weight
18g±2g
Dimensions
22mm×22mm×23.5mm
Operating Case Temperature
-40℃~+50℃
Storage Case Temperature
-45℃~+70℃
Vibration
4.06g, random vibration, 3 axes
Shock
80g, 4ms, sawtooth waveform, 3 axes/6 directions
