LM5000 Mini 5km Ultra-Compact Laser Rangefinder Module
- Model:
- LM5000 Mini
Features
Highlights
Description

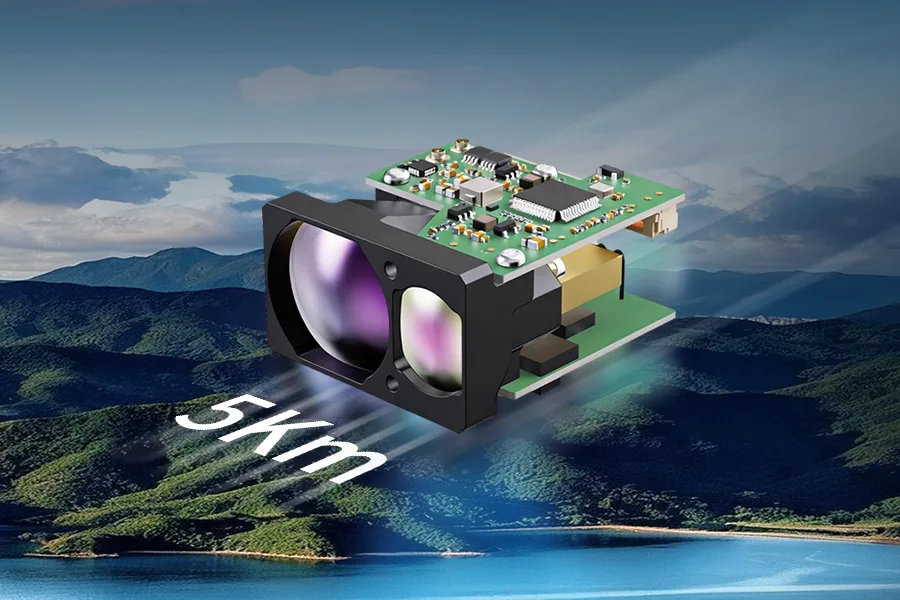

The LM5000 mini is an ultra-compact laser rangefinder module featuring a proprietary 1535 nm erbium-glass laser and Class 1 eye safety. With a 20–6,000 m ranging range and up to 5 km ranging for vehicle targets, it integrates single/continuous ranging, first/last target detection, and multi-target ranging.
Compact, lightweight, and low-power, it is ideal for commercial and industrial drones, outdoor handheld devices, and security applications.
Specifications
Model
LM5000 mini
Basic Specifications
Laser Wavelength
1535±5nm
Eye Safety Class
Class 1 (IEC 60825-1)
Laser Beam Divergence
≤0.65mrad
Ranging Performance (Building)
20~6000m
Ranging Accuracy (Building Target)
±1m
Measurement Frequency
1~10Hz
Multi-Target Detection
Up to 3
Detection Probability
≥98%
False Alarm Rate
≤1%
Electrical Specifications
Communication Interface
UART(TTL_3.3V/2.5V)
Supply Voltage
DC 4.5~16V
Operating Power Consumption
5V, ≤0.6W@1Hz; 5V, ≤2W@10Hz
Start-up Time
≤400ms
Physical Specifications
Weight
≤38g
Dimensions (L × W × H)
<43×35×22.5mm
Shock
75g, 6ms
Vibration
0.01~0.04g²/Hz, 20~2000Hz
Environmental Specifications
Operating Temperature
-20℃ ~ +70℃
Storage Temperature
-25℃ ~ +75℃
