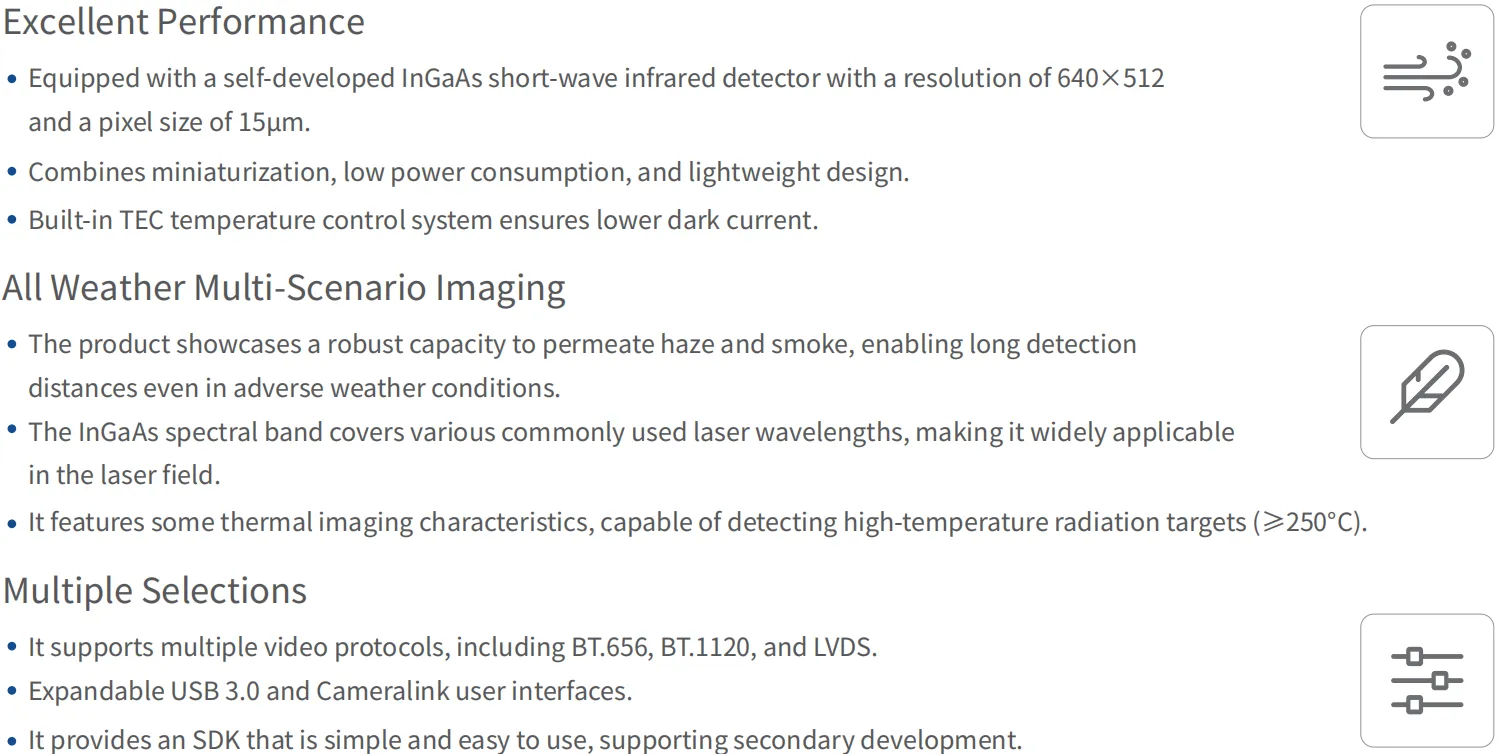

Highlights
Description
Keen B615 short‑wave infrared camera is a product designed for high‑definition applications. Adopting a high‑sensitivity InGaAs shortwave infrared detector with a pixel size of 15μm and an array size of 640×512, it features superior built‑in image processing algorithms that deliver finer and higher‑quality images. This product features low power consumption, low noise, and wide dynamic range.
It supports multiple serial communication and video output interfaces. With various lightweight infrared lenses provided, it can be widely used in security monitoring, machine vision, semiconductor testing, laser detection, and other fields.
Specifications
Product Model
Keen B615
Detector Type
InGaAs short‑wave infrared focal plane detector
Spectral Response Range
0.9‑1.7μm
Pixel Pitch
15μm
Resolution
640×512
Frame Rate
25Hz/50Hz
Effective Pixel Rate
≥99.8%
Integration Type
Snapshot global shutter
Exposure Time Range
0.005ms~30ms
35ms
Cooled Mode
TEC 1
Output Data Depth
8bit/10bit/14bit
Readout Noise (Typical value)
30e@Gain0
Optional Gain
3‑level
Dynamic Range
50dB(Gain0),62dB(Gain1),72dB(Gain2)
Average Pixel Dark Current
≤ 100ke/s@20℃
On‑board Image Processing
Non‑uniformity correction,brightness/contras adjustment,time domain/airspace noise reduction,digital detail enhancement
Power Supply Range
5‑24V DC (voltage: 12V, DC, recommended)
Typical Power Consumption @25℃
<1.8W(USB)
Digital Video
Cameralink/USB 3.0/Ethernet
Communication Interface
RS‑232/RS‑422/UART (3.3V)
Optical Interface
C‑Mount
Weight
135g±3g (USB)
Dimensions
48mm×48mm×48.5mm (USB)
Operating Case Temperature
-40℃~+50℃
Storage Case Temperature
-45℃~+85℃
Vibration
6.06g, random vibration, 3 axes
Shock
80g, 4ms, sawtooth waveform,3 axes/6 directions
Industry Solution
Process Defect Detection
Scientific Research
Security Monitoring
Industrial Applications
