Highlights
Description

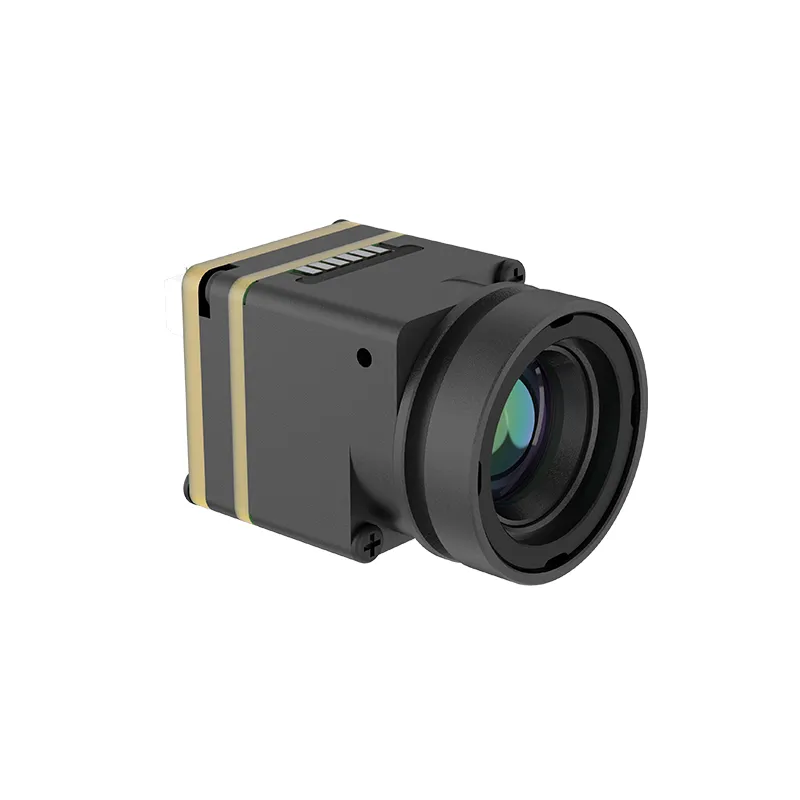

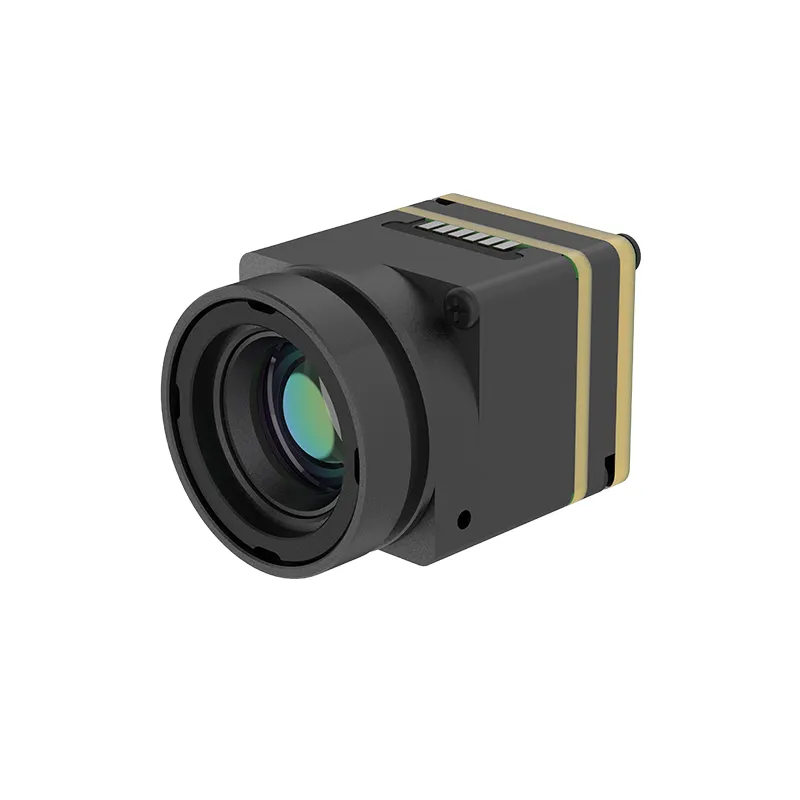

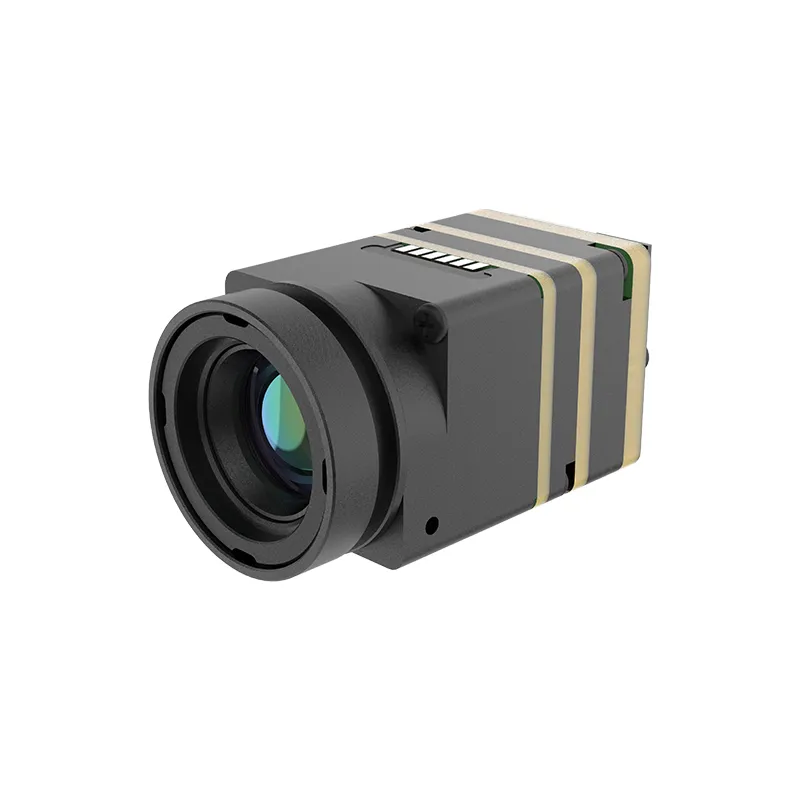

The Turing M640Pro ultra-miniature uncooled infrared core module is a groundbreaking product. With its ultra-compact design measuring just 13 mm × 13 mm and weighing < 3.5 g, it redefines the industry standards for SWaP (Size, Weight, and Power). Powered by our proprietary pixel pitch of 8 μm, 640 × 512 uncooled LWIR detector, it delivers higher resolution to capture more intricate details.
Operating at an ultra-low power of 0.5 W and offering versatile SDK solutions, it perfectly meets the stringent demands of payload constraints, system integration, and iterative development for compact systems like commercial drones and micro-gimbals. It also offers multiple lightweight infrared lens options. Its compact body delivers an extraordinary thermal imaging experience, pushing the boundaries of applications.
Specifications
Product Model
Turing M640Pro
Specifications
Detector Type
VOx uncooled infrared focal plane detector
Spectral Range
8~14μm
Pixel Pitch
8μm
NETD
≤40mK@25℃, F#1.0
Detector Frame Rate
50 Hz (Imaging) / 30 Hz (Thermography)
Image Adjustment
Brightness/Contrast Adjustment
Manual/Automatic
Polarity
Black hot/white hot
Pseudocolor
Supported
Crosshair
Display/hide/move
Image Processing
Grayscale stretching, local contrast enhancement, temporal noise reduction, spatial noise reduction, detail enhancement, edge enhancement
Image Mirroring
Left/right, up/down, diagonal
Temperature Measurement
Range
-20℃ ~ +150℃, 100℃ ~ +650℃
Temperature Measurement Accuracy (Typical value)
±2 ℃ or ±2% of reading @ ambient temperature -20 ℃ ~ 60 ℃
Temperature Measurement Tools
Analysis tools: spot, line, area
Electrical Parameters
Power Supply Voltage (Typical)
Core Assembly MAIN_POWER: 3.8 ~ 5.2V (Typical: 5 V); 4P USB User Expansion Board supports USB 2.0, USB_VBUS: 5.0V
Typical Power Consumption @25℃
≤0.5W
Digital Video
8bite LVCMOS/BT.601/2lane MIPI USB2.0
Serial Communication Interface
UART (1.8V)
Physical Characteristics (Excluding lens and flange)
Dimensions (W×L×H) mm
13mm×13mm×13.4mm
Weight (g)
< 3.5g
Optional Lenses
Lens (mm)
4.5mm/8.7mm
Environmental Adaptability
Operating Case Temperature
-40℃ ~ +70℃ (-20℃~+60℃ Temperature measurement)
Storage Case Temperature
-45℃~+85℃
Humidity
5% ~95%, non-condensing
Vibration
2g, random vibration, 3 axes/ 6 directions
Shock
6g, 2ms, sawtooth waveform, 3 axes/ 6 directions
Industry Solution
Process Defect Detection
Fire Monitoring and Alarm

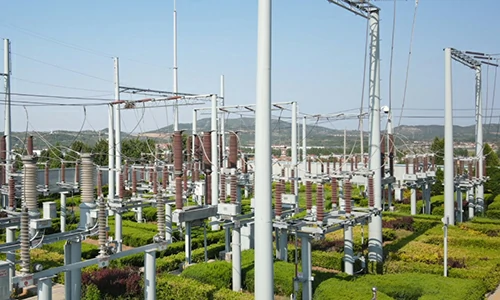

Power Line Inspection
Personnel Search and Rescue
